The deep integration of Synthetic Aperture Radar (SAR) and Unmanned Aerial Vehicles (UAVs) is a cutting-edge field in current technological development. By integrating radar technology into UAV platforms, not only is the performance and application range of miniature SAR enhanced, but it also provides strong technical support for future intelligent airspace management.
The following is an introduction to our company's deep integration of radar and UAVs.
Advantages of Deep Integration of Radar and UAVs:
Enhanced Perception: UAVs integrating radar systems can achieve high-precision target detection and tracking in complex environments, greatly improving their autonomous navigation capabilities.
Improved Mission Efficiency: Radar data can help UAVs better plan flight paths, avoid obstacles, and adjust mission strategies in real time, thereby improving mission execution efficiency and success rate.
Expanded Application Scope: UAVs with radar capabilities can play an important role in more fields, such as search and rescue operations, environmental monitoring, and disaster assessment.
The following mainly introduces some UAVs in the SAR system:
1. Multi-rotor UAVs
Multi-rotor UAVs are unmanned rotary-wing aircraft with three or more rotor shafts. The rotors generate thrust through the rotation of electric motors on each shaft. The rotor collective pitch of this type of aircraft is fixed, unlike that of a typical helicopter which is variable. By altering the relative rotational speeds between different rotors, the magnitude of the thrust on a single shaft can be changed, thereby controlling the aircraft's trajectory. Multirotor aircraft, due to their strong maneuverability, vertical takeoff and landing capabilities, and hovering ability, are primarily suitable for low-altitude, low-speed missions requiring vertical takeoff and landing and hovering. These aircraft have a simple and reliable structure and strong wind resistance, thus finding wide application in various scenarios.

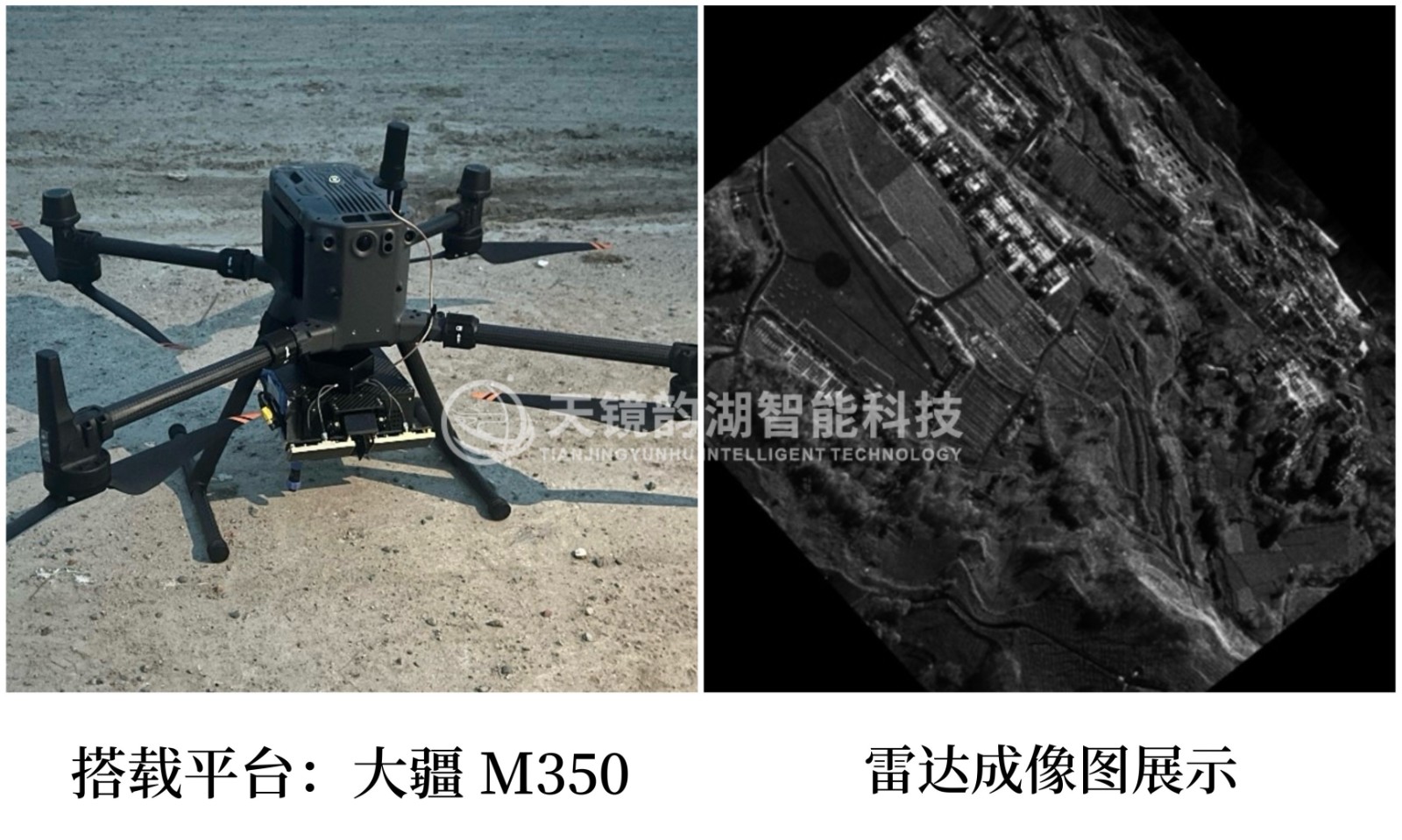

The image below is a radar image taken by a DJI M350 equipped with our company's (Suzhou Tianjing Yunhu Intelligent Technology Co., Ltd.) miniature synthetic aperture radar.
2. Fixed-Wing Unmanned Aerial Vehicles (UAVs)
Fixed-wing UAVs are unmanned aerial vehicles with a fixed-wing design, similar to traditional aircraft, relying primarily on their wings for lift. Compared to multi-rotor UAVs, fixed-wing UAVs offer higher flight efficiency, endurance, and speed, making them suitable for long-duration, wide-area missions. They are widely used in agricultural monitoring, geographic mapping, environmental protection, disaster response, and military reconnaissance. Fixed-wing UAVs can typically carry heavier sensors (such as high-definition cameras and lidar) for high-precision data acquisition. Furthermore, modern fixed-wing UAVs often possess automatic takeoff and landing and flight planning capabilities, reducing operator workload. In recent years, with technological advancements, fixed-wing UAVs have made continuous progress in endurance, intelligence, and sensor integration, demonstrating enormous application potential and market value.

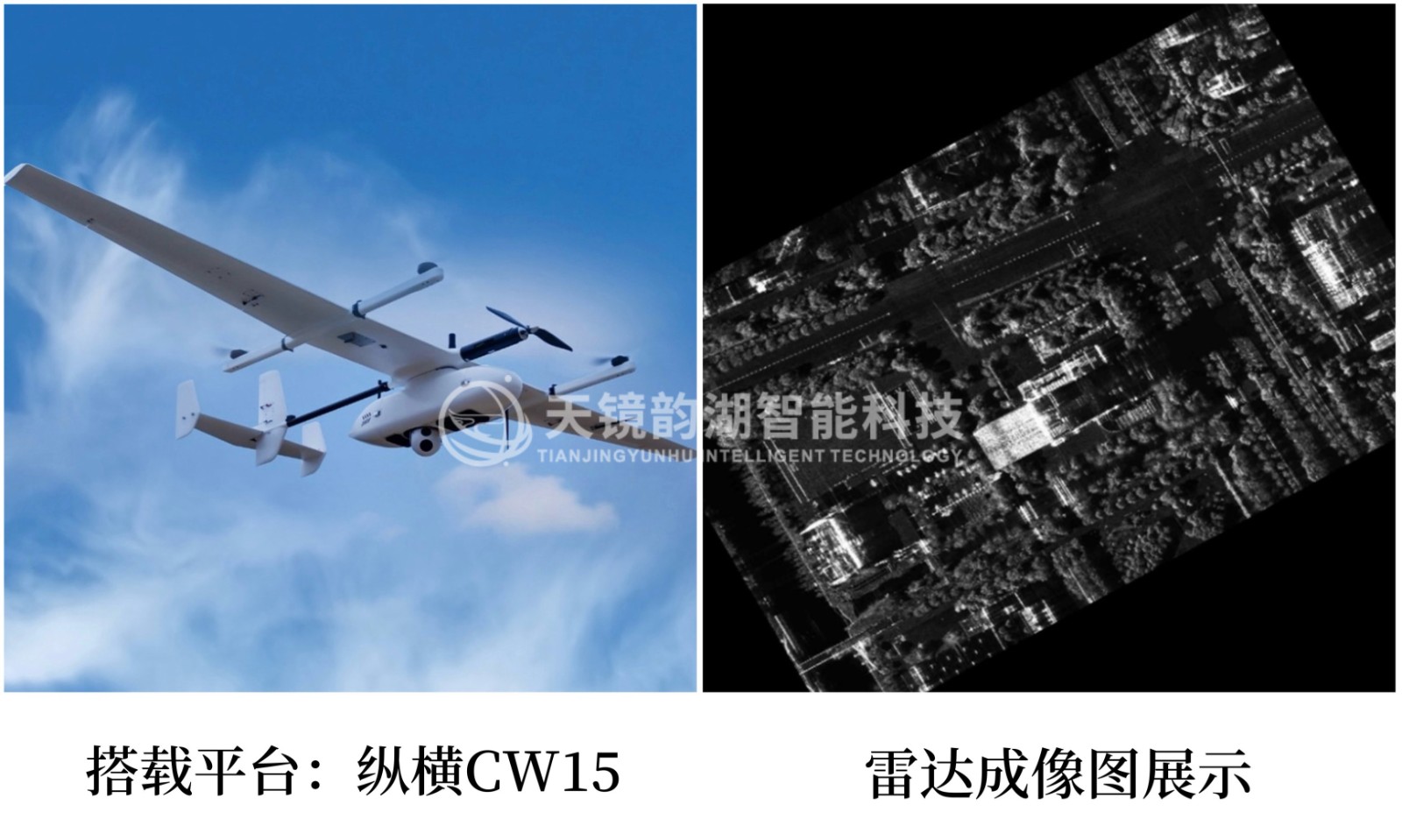

The image below shows a radar image taken by the Zongheng CW15 equipped with our company's (Suzhou Tianjing Yunhu Intelligent Technology Co., Ltd.) miniature synthetic aperture radar.
Conclusion: Multi-rotor and fixed-wing UAVs each have their advantages and disadvantages in radar applications, depending on specific mission requirements and usage scenarios. Therefore, a comprehensive consideration should be given to factors such as mission requirements, coverage area size, ease of operation, and budget. Secondly, in terms of mission efficiency, UAVs equipped with radar systems can perform more precise target positioning and data acquisition.
Suzhou Tianjing Yunhu Intelligent Technology Co., Ltd. is a technology company specializing in the research, development, production, sales, service, and technology promotion of synthetic aperture radar (SAR) systems. Currently, our radar combined with UAVs has been widely applied in agriculture, water conservancy, power, environmental protection, surveying and mapping, resource exploration, urban construction, disaster assessment, and other fields. We have customized exclusive solutions for different industries and application scenarios to meet the diverse needs of our customers. If you are interested in radar technology or are looking for high-quality radar solutions, please follow our latest updates. We look forward to cooperating with you!
