Synthetic Aperture Radar (SAR), as a core technology of active microwave remote sensing, overcomes the limitations of optical remote sensing caused by illumination, clouds, fog, rain, and snow, enabling all-weather, 24/7 Earth observation. It plays an irreplaceable role in fields such as land surveying, disaster monitoring, military reconnaissance, marine surveillance, and agricultural and forestry resource surveys. The selection of the operating frequency band for SAR payloads is a core element determining the system's imaging resolution, ground feature identification capability, environmental adaptability, and penetration performance, directly defining the application boundaries and technological advantages of the equipment.
Currently, the mainstream application frequency bands of SAR systems are concentrated in the C-band, X-band, Ku-band, and Ka-band. These four bands have a large frequency span and significant wavelength differences, resulting in drastically different electromagnetic propagation characteristics, ground object scattering mechanisms, and imaging effects. This article starts from the physical essence, systematically analyzes the core characteristics of the four bands, explains in detail their impact mechanisms on key SAR imaging indicators, and sorts out the frequency band adaptation logic in combination with practical application scenarios, providing comprehensive technical reference for SAR payload design, system selection, and data application.

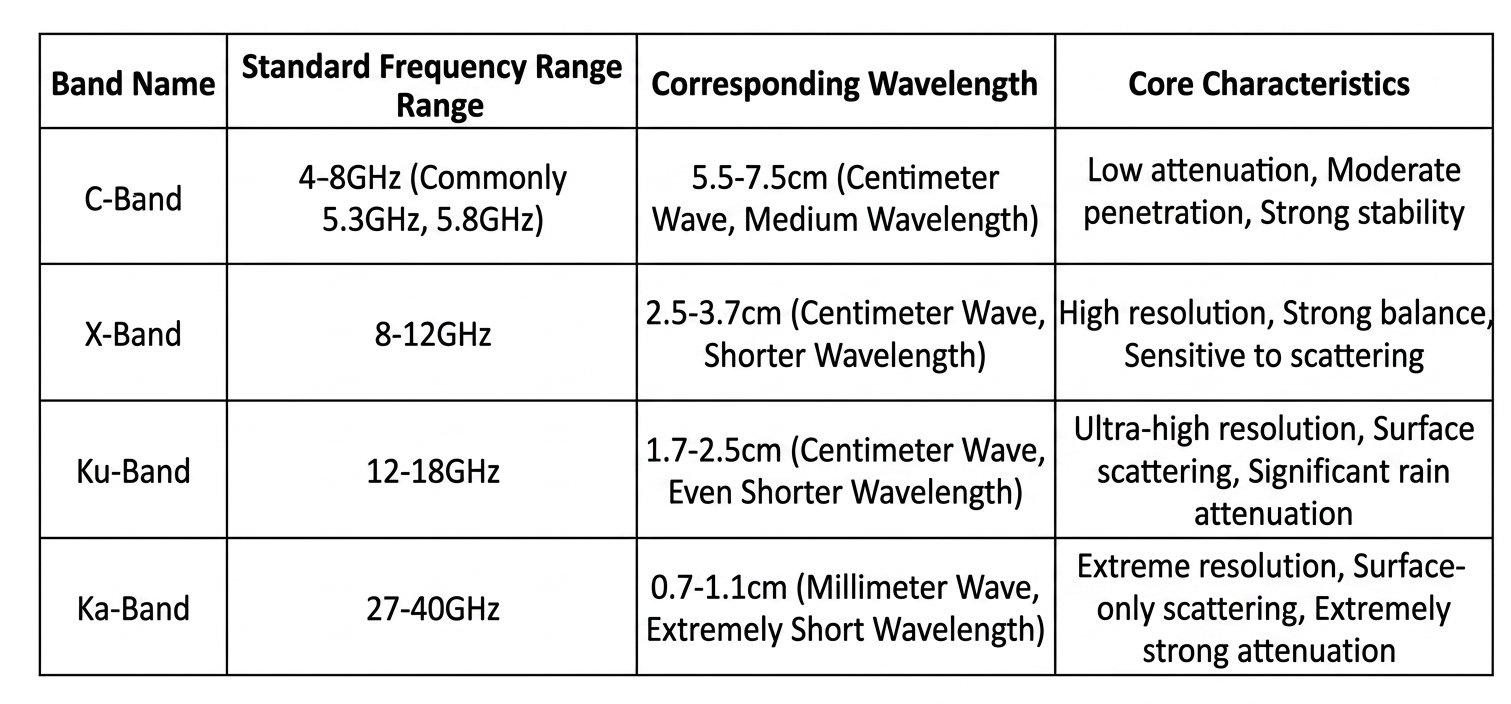

I. Comparison of Core Physical Characteristics of the Four Mainstream SAR Bands
The core differences in the microwave bands lie in their frequency and wavelength. Higher frequencies and shorter wavelengths result in regular changes in backscattering intensity, atmospheric attenuation coefficient, penetration capability, and spatial resolution. This is the fundamental reason determining the imaging effects of different bands. The table below clearly lists the standard parameters and basic physical properties of the four mainstream bands, laying the foundation for subsequent imaging effect analysis:
In short, the band positioning is as follows: C-band focuses on "broad spectrum stability", X-band focuses on "all-round balance", Ku-band focuses on "fine observation" and Ka-band focuses on "ultimate close-up". There is no absolute superiority or inferiority among the four types of bands, only differences in scene adaptation.
II. Core Influence Mechanisms of Different Frequency Bands on SAR Imaging Performance
The core evaluation indicators of SAR imaging performance include spatial resolution, ground feature detail reproduction, penetration capability, anti-interference capability, and image signal-to-noise ratio. The four frequency bands, through differences in wavelength and frequency, fundamentally affect these indicators, ultimately resulting in drastically different image quality and application value.
(I) Spatial Resolution and Ground Feature Detail Reproduction Capability
The theoretical resolution of SAR is determined by parameters such as signal bandwidth and slant range. However, the actual visual resolution and detail recognition of imaging are highly dependent on wavelength characteristics. The shorter the wavelength, the more sensitive the scattering response to the small structures, edge contours, and texture features of ground features, resulting in a sharper image and stronger small target recognition capability.
• C-band: With a longer wavelength, the ground feature scattering response is relatively smooth, resulting in a softer overall image with clear outlines, but weaker detail representation. It lacks sufficient differentiation of small ground features (such as small vehicles, small buildings, and surface cracks), making it suitable for large-area macroscopic imaging but not for fine-grained target recognition.
Imaging image of our company's C-band SAR product
• X-band: With a moderate wavelength, it achieves a golden balance between scattering sensitivity and resolution. It can cover large areas for observation and clearly reproduce details such as houses, roads, vehicles, and small and medium-sized water conservancy facilities. The ground features are clearly layered and have sharp edges and contours. It is the optimal choice that takes into account both macroscopic and microscopic aspects, and the visual imaging effect is most in line with the public's perception of high-definition remote sensing.
Our X-band SAR product imaging images
• Ku-band: Shorter wavelength, significantly improved spatial resolution, capable of capturing millimeter-level surface textures, fine building structures, small camouflaged targets, and detailed features of ships. The imaging image is full of detail, suitable for high-precision fixed-point observation, but the image is prone to local over-sharp noise, requiring higher signal processing.
Our company's KU-band SAR product imaging image
• Ka-band: Extremely short wavelength, with sub-meter or even centimeter-level extreme resolution, enabling "close-up" imaging. It can identify ultra-small targets such as small ground equipment, subtle surface deformations, and building damage gaps. However, the imaging swath is extremely narrow and is highly susceptible to environmental interference, making it only suitable for short-range airborne or ground-based SAR systems.
Imaging image of our KA-band SAR product
(II) Differences in Surface Penetration Ability
Microwave penetration ability is positively correlated with wavelength. Longer wavelengths exhibit stronger diffraction capabilities, allowing them to penetrate shallow vegetation, dry soil, snow, and other media, capturing information about targets below the surface or under vegetation cover. Shorter wavelengths concentrate energy at the surface, offering almost no penetration and only reflecting the scattering characteristics of the outermost layer of the surface.
• C-band: Offers the best penetration ability, capable of slightly penetrating dense canopies, shallow dry soil, and thin snow cover. It effectively monitors understory topography, shallow surface deformation, permafrost changes, and bare soil structure, avoiding observation blind spots caused by vegetation obstruction. It has significant advantages in forestry, geological, and agricultural monitoring.
• X-band: Offers weaker penetration ability, only penetrating sparse vegetation and unable to penetrate dense canopies and soil layers. Imaging results fully reflect surface information, making it suitable for observation in unobstructed scenarios such as urban areas, bare land, paved roads, and oceans.
• Ku/Ka band: Almost no penetrability; microwave energy is entirely reflected by the surface of objects. Even minute scattering from leaves, walls, and soil surfaces is captured, making it impossible to obtain information from lower layers. It is only suitable for observing purely surface targets; once vegetation or a thin layer of soil covers the target, the information is completely lost.
(III) Environmental Adaptability and Image Stability
The core advantage of SAR is all-weather observation, and the frequency band directly determines its resistance to meteorological interference. The higher the frequency, the stronger the absorption and scattering of microwave signals by water vapor, raindrops, and fog droplets, resulting in more severe signal attenuation, a lower signal-to-noise ratio, and images prone to blurring, noise, and distortion.
• C band: Strongest atmospheric penetration, unaffected by clouds, fog, light rain, or dust storms. Clear and stable imaging data can be obtained regardless of overcast weather or complex meteorological conditions. It is the preferred frequency band for large-scale satellite-based network observation, truly enabling all-day, all-weather operation.
• X-band: Highly adaptable to various environments. Regular fog, light rain, and overcast skies have little impact on imaging. Only during heavy rain or severe snowstorms will the signal slightly weaken, resulting in a minor decrease in image quality. Overall stability is close to that of the C-band, making it suitable for most conventional observation scenarios.
• Ku-band: Poorly adaptable to various environments. Signal attenuation is significant in rainy weather. Raindrop scattering leads to substantial noise in the image, blurring target outlines. Dense fog and high humidity also affect image quality. It is only suitable for detailed observations under clear or partly cloudy conditions.
• Ka-band: Extremely poorly adaptable to various environments. It is a "clear-sky dedicated" band. Even slight rain, fog, and high humidity can cause severe signal attenuation, even preventing effective imaging. It is only suitable for high-precision observations under controlled environments such as close-range airborne or ground-based fixed stations.
(IV) Imaging Swath Width and Observation Efficiency
Wavelength is negatively correlated with imaging swath width and observation efficiency. Longer wavelengths result in a wider imaging swath, broader coverage in a single pass, and higher observation efficiency; shorter wavelengths result in a narrower imaging swath, smaller coverage in a single pass, and are more suitable for fixed-point focusing observations.
The C-band has the widest imaging swath, suitable for nationwide, large-area land surveys, marine surveillance, and comprehensive disaster investigation; the X-band has a moderate swath width, balancing coverage and resolution, suitable for regional-level routine monitoring; the Ku and Ka bands have extremely narrow swath widths and low observation efficiency, unable to meet the needs of large-scale surveys, and are only suitable for high-precision close-up observations of key areas and specific targets.
III. Typical Application Scenarios and Selection Strategies for Each Band
Considering the differences in imaging effects and characteristics among the four bands, the selection of SAR payload frequency bands for different scenarios requires precise adaptation. It is crucial to avoid blindly pursuing high resolution while neglecting practicality. The following are the core application scenarios and selection recommendations for each band:
(I) C-Band: Preferred for Comprehensive Surveys and All-Weather Monitoring
Core Suitable Scenarios: Spaceborne large-scale land mapping, comprehensive disaster monitoring such as floods/earthquakes/landslides, ocean currents and sea ice monitoring, agricultural and forestry resource surveys, long-term monitoring of permafrost and surface deformation, and forestry resource surveys (understory target observation).
Selection Logic: For scenarios requiring large-scale coverage, long-term stable monitoring, penetration of vegetation obstruction, and immunity to complex weather interference, the C-band is the preferred choice. Representative projects include global mainstream commercial SAR satellite networks and national-level geological disaster monitoring and early warning systems.
(II) X-band: Versatile and Dual-Use (Military and Civilian)
Core Application Scenarios: Regional high-precision mapping, urban planning and illegal construction monitoring, water conservancy facility inspection, traffic and road monitoring, targeted verification of small and medium-sized disasters, military reconnaissance, maritime vessel surveillance, and precision agricultural management.
Selection Logic: For scenarios requiring a balance of resolution, coverage, and environmental adaptability, satisfying both macroscopic monitoring and the identification of small and medium-sized ground targets, the X-band offers the highest cost-effectiveness and widest application. It is also the mainstream frequency band for airborne SAR and high-resolution spaceborne SAR.
(III) Ku-band: Dedicated for Detailed Observation in Key Areas
Core Application Scenarios: Monitoring structural deformation of key engineering projects, identifying minor building damage, reconnaissance of small military targets, precise port and vessel surveillance, monitoring of minor surface cracks, and high-precision local mapping.
Selection Logic: For fixed key areas requiring ultra-high resolution, capturing subtle surface changes, and the ability to conduct observations in advance while avoiding adverse weather conditions, the Ku-band is chosen. It is primarily used for airborne high-precision SAR payloads and dedicated reconnaissance payloads. (iv) Ka-band: Extreme close-up, high-precision close-range observation
Core suitable scenarios: Fine-grained identification of close-range ground targets, airborne close-range reconnaissance, monitoring of subtle deformations in industrial facilities, feature extraction of small targets, and laboratory-level high-precision imaging verification.
Selection logic: Only suitable for special scenarios requiring centimeter-level extreme resolution in close-range, clear-sky conditions. Not suitable for large-scale, long-distance, all-weather operations; it belongs to a special-purpose frequency band.
IV. Summary and Engineering Recommendations for SAR Payload Frequency Band Selection

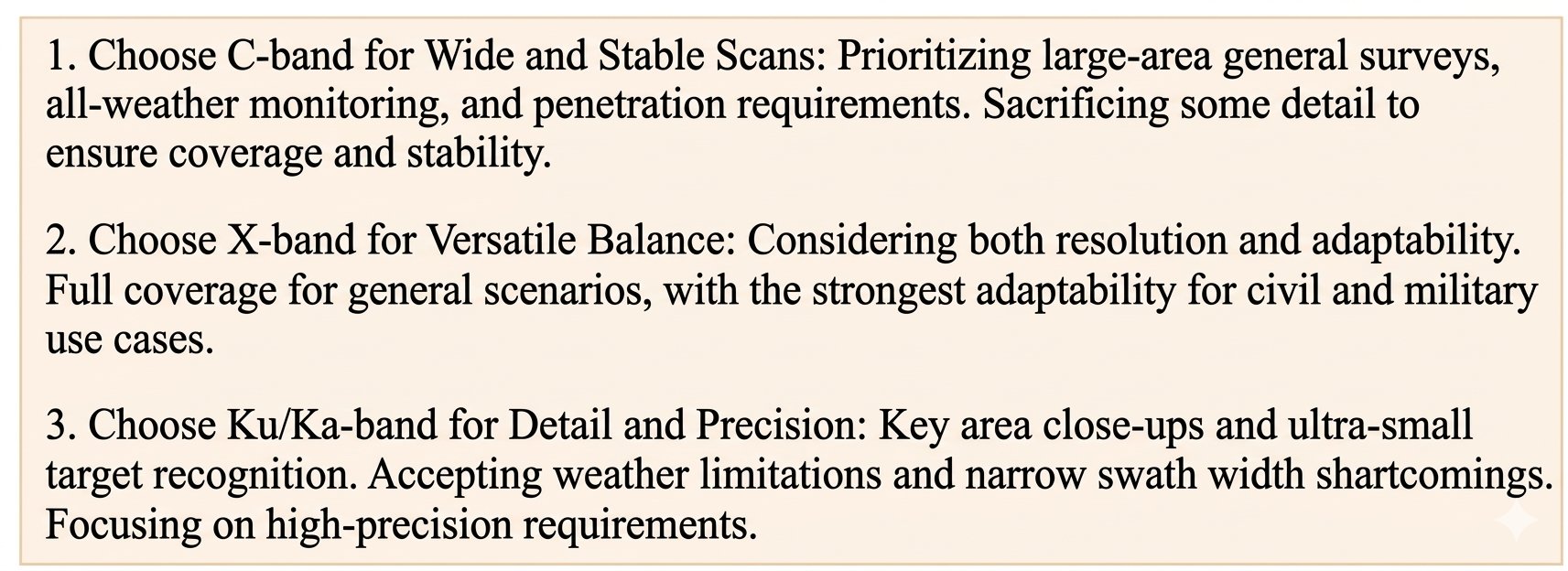

There is no absolutely "optimal solution" for SAR frequency bands. The core is to match the application scenario requirements. The selection of the four major bands can be summarized into three core principles:
(I) Recommended Typical Scenarios
Agricultural and Forestry Monitoring: C-band is preferred, considering both canopy penetration and scattering information richness; X-band can be used for high-precision crop parameter inversion.
Topographic Mapping and Geological Disaster Monitoring: X-band is widely used in spaceborne interferometry, exhibiting excellent resolution and deformation monitoring accuracy; C-band is suitable for large-scale, long-term surface deformation monitoring.
Marine Monitoring and Sea Ice Observation: C-band is a classic choice for marine SAR, providing stable inversion results for sea surface wind fields and wave spectra.
Target Identification and Fine-Scale Reconnaissance: Ka-band is suitable for high-resolution target identification and is often carried out on UAVs or near-space platforms; Ku-band achieves a good balance between resolution and platform adaptability, suitable for small and medium-sized UAV missions.
Penetrating Mapping and Archaeological Exploration: C-band has unique value in shallow surface exploration in arid regions due to its superior penetration.
In practical engineering design, multi-band fusion design, such as C+X band combination, can be adopted to meet the needs of complex applications. This can take into account both large-scale surveys and fixed-point fine observations, make up for the shortcomings of single frequency bands, and achieve a balance between overall coverage and details, as well as stability and high precision.
